Chemical Centrifugal Pump
Chemical Centrifugal Pump
  • Flow range: 6.3-200m3/h
  • Head range: 20-50m
  • Speed: 1450r/min, 2900r/min
  • Diameter range: DN40-DN125
  • Matched power: 1.5-55KW
  • Working temperature: minimum: -20℃ and maximum: 100℃
  • Working pressure: maximum: 1.6MPa
  • Structure: single stage, single suction, centrifugal
Description

IHF series pump wet ends are made using perfluoro-propylene (F46, fluoroplastics), which gives them a strong corrosion resistance. These pumps will convey the strong acid medias of arbitrary concentrations, like sulfuric acid, hydrochloric acid, hydrofluoric acid, nitric acid, phosphoric acid, Ni acid slurry and more.

This pump series is widely used to process chemical, phosphate matrix fertilization, pharmacy, dye, pesticide, paper, textile and other industries.

Features

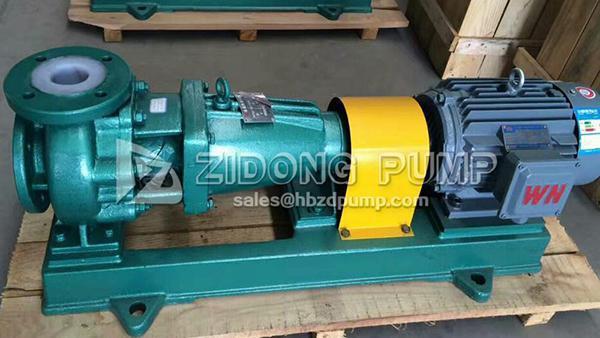

Chemical Centrifugal Pump
  • The pump body features a metal casing and fluoroplastics liner. The pump cover, impeller, shaft sleeve and other parts are sintered and compressed with metal inserts which are then coated with fluoroplastics. IHF pumps manufactured using this method feature a high strength and corrosion resistance.
  • Upon customer request, the pump can be paired with a motor or diesel engine.
  • This pump features an easy disassembly and maintenance, as well as a long service life.
Optional Models
Model Inlet diameter (mm) Outlet diameter (mm) Flow (m3/h) Head (m) Power (kW) Speed (r/min) NPSH (m) Inquiry
IHF32-25-125 32 25 5 20 1.5 2900 2.3
IHF32-25-125A 32 25 4.5 16 1.1 2900 2.3
IHF32-25-160 32 25 5 32 2.2 2900 2.3
IHF32-25-160A 32 25 4.5 28 1.5 2900 2.3
IHF40-32-125 40 32 6.5 20 2.2 2900 2.5
IHF40-32-125A 40 32 5.6 28 1.5 2900 2.5
IHF50-32-125 50 32 12.5 20 2.2 2900 3
IHF50-32-160 50 32 12.5 32 4 2900 3
IHF50-32-200 50 32 12.5 50 7.5 2900 3
IHF65-50-125 65 50 25 20 3 2900 3.5
IHF65-50-160 65 50 25 32 5.5 2900 3.5
IHF65-40-200 65 40 25 50 11 2900 3.5
IHF80-65-125 80 65 50 20 5.5 2900 4
IHF80-65-160 80 65 50 32 11 2900 4
IHF80-50-200 80 50 50 50 15 2900 4
IHF100-80-125 100 80 100 20 11 2900 4.5
IHF100-80-160 100 80 100 32 15 2900 4.5
IHF100-65-200 100 65 100 50 30 2900 4.5
