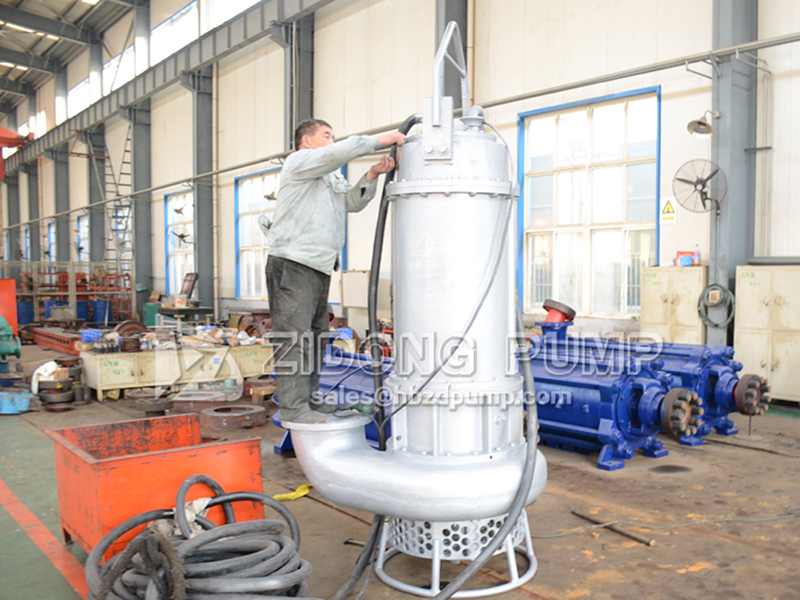

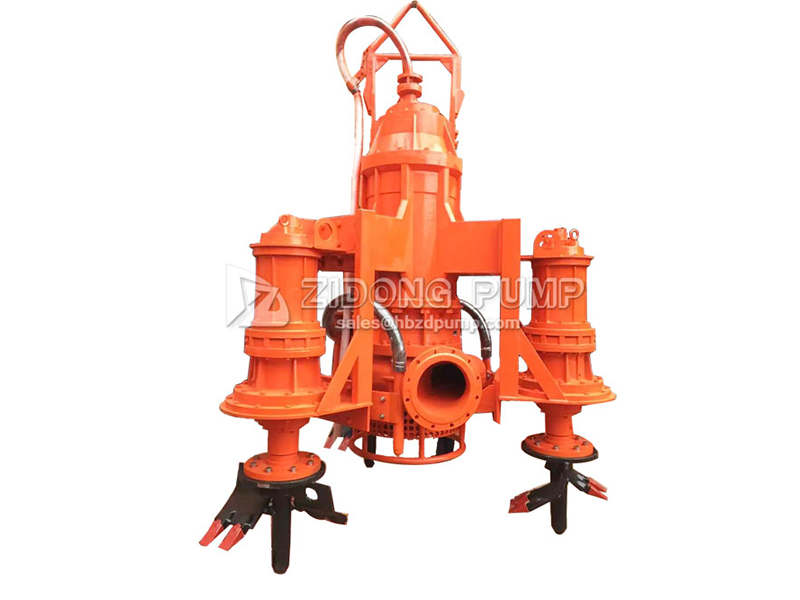

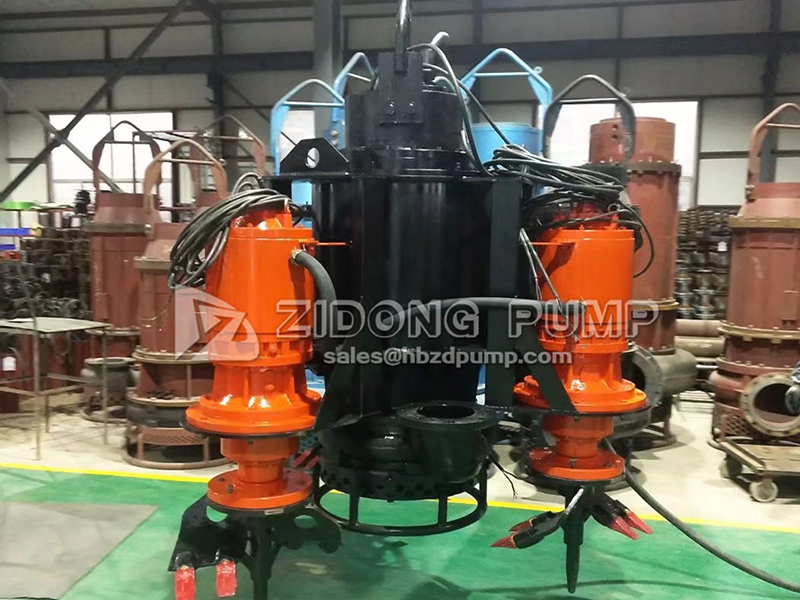

Vertical Submersible Centrifugal Pump

Vertical Submersible Centrifugal Pump
Vertical Submersible Centrifugal Pump
Vertical Submersible Centrifugal Pump
Vertical Submersible Centrifugal Pump
Vertical Submersible Centrifugal Pump
  • Flow range: 10-3300m3/h
  • Head range: 5-60m
  • Speed: 980-1460rpm
  • Matching power: 3-315kW
  • Diameter range: DN50-DN400
  • Operation temperature: maximum 110℃
  • Wet ends material: high chromium wear-resistant alloy
  • Structure: vertical, single stage, single suction, double impeller
Brief introduction

NSQ submersible centrifugal pumps feature a unique double-impeller structure, including a stirring impeller installed on the base, secondary to the main impeller. The stirring impeller will drive the precipitated sludge into a turbulent flow and then pump the fluid. It features a strong discharge capacity and it will not become easily blocked. As long as the working current remains within the rated current, the allowable solid particle content within the medium can reach 30 to 60%.

During operation, the driver and pump submerge into the water, with a maximum working depth ranging between 20-25m.

Application

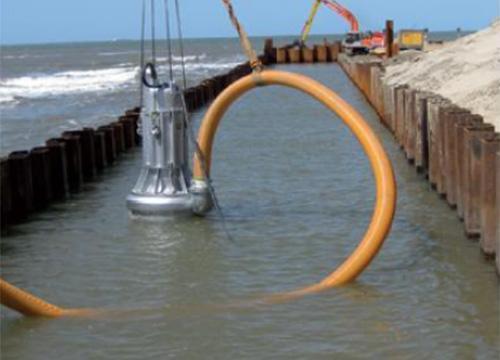

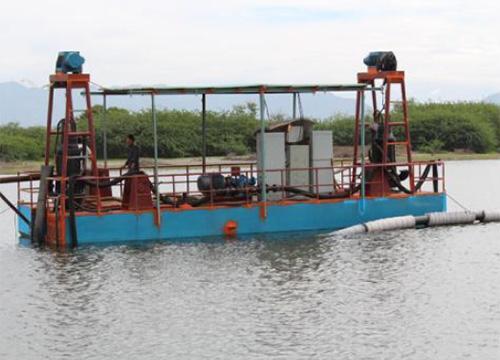

NSQ series pumps are used in a variety of industries for heavy media processing, including marine dredging, mineral processing, wet sand suction, waste sludge suction, sand reclamation, barge loading and more. It is an ideal replacement for a traditional mud pump.

  • Vertical Submersible Centrifugal Pump
  • Vertical Submersible Centrifugal Pump
Drive type According to different operating conditions, we provide motor and hydraulic drives for customers to choose from.
  • Motor drive
    If using a motor drive, an oil tank seal protection will be used, with a mechanical seal installed inside in order to prevent high pressure water and impurities from entering the motor cavity.

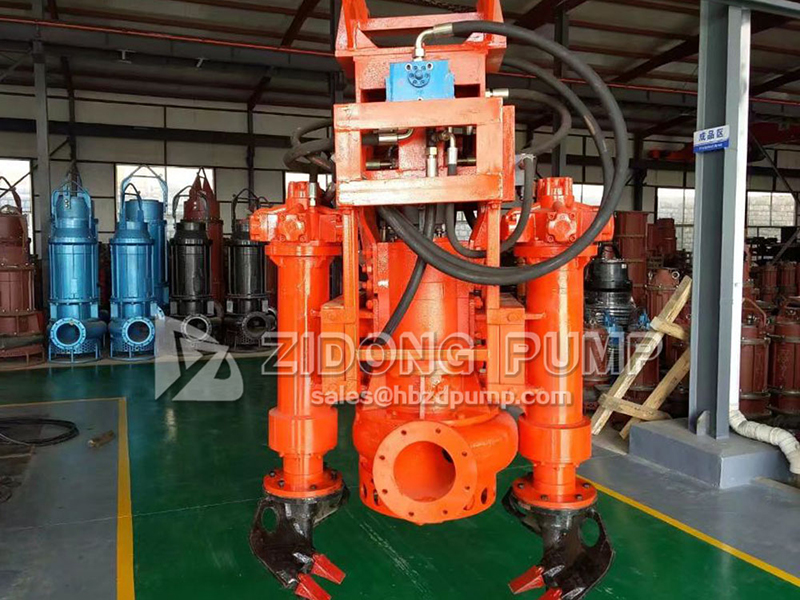

  • Hydraulic drive
    The hydraulic drive features a worry free performance about water entering the motor, because it adapts to higher water pressures and a higher suction height, thus preventing water from entering the motor cavity. The hydraulic drive is also an ideal solution if the pump cannot be easily connected to an external power supply.

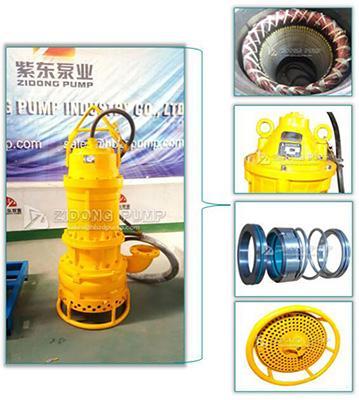

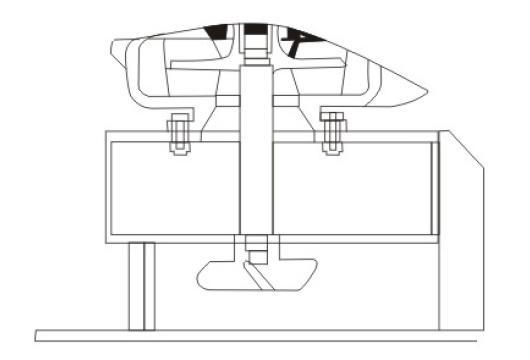

Features Suction port structure of the pump with stirring impeller
Vertical Submersible Centrifugal Pump
  • The stirring impeller on the top of the pump will come into direct contact with the depositional surface. It is capable of controlling the sand concentration in the conveyed media through a diving depth.
  • Due to the underwater operation of the pump and drive, the suction head is not limited, and features a highly efficient sand absorption and thorough dredging.
  • Impeller, stirring impeller and other main wet ends are manufactured with a highly wear resistant and corrosion resistant material.
    • Vertical Submersible Centrifugal Pump
  • Operation is simple, and the pump requires no auxiliary vacuum pump or stirring device.
  • The driver submerges into water, and requires no grounding for fixing devices, which saves installation costs.
  • Triple protection: oil chamber flooding detection and alarm, motor chamber flooding detection and alarm, motor overheating detection and alarm

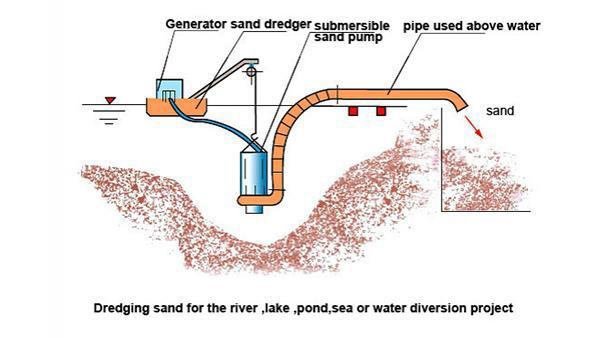

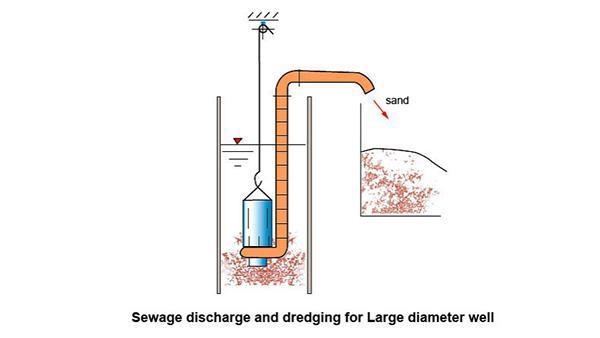

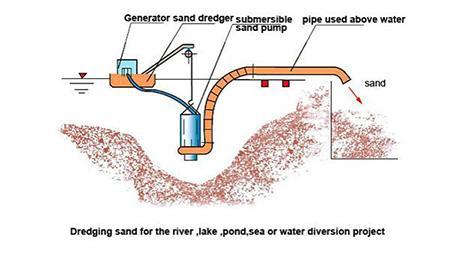

Working principle
  • Vertical Submersible Centrifugal Pump
  • Vertical Submersible Centrifugal Pump
Parameters
Model selection table (clear water performance)
Model Flow (m3/h) Head (m) Motor power (kW) Rotate Speed (r/min) Efficiency (%) Max partial diameter (mm) Water outlet diameter (mm) Inquiry
NSQ25-12-3 25 12 3 1450 50 7 50
NSQ20-25-4 20 25 4 1450 43 6 50
NSQ45-15-5.5 45 15 5.5 1450 58 13 80
NSQ20-30-5.5 20 30 5.5 1450 48 7 50
NSQ50-10-5.5 50 10 5.5 1450 60 13 80
NSQ20-15-7.5 20 15 7.5 1460 49 7 50
NSQ25-30-7.5 25 30 7.5 1460 54 7 80
NSQ32-20-7.5 32 20 7.5 1460 53 13 80
NSQ 45-15-7.5 45 15 7.5 1460 55 13 80
NSQ 100-10-7.5 100 10 7.5 1460 60 21 100
NSQ30-30-7.5 24 31 7.5 1460 43 13 80
30 30
36 29
NSQ 70-20-11 70 20 11 1460 55 13 80
NSQ 25-40-11 25 40 11 1460 48 13 80
NSQ50-21-11 35 22 11 1460 48 21 100
50 21
60 20
NSQ100-16-11 70 20 11 1460 55 21 100
100 18
120 15
NSQ25-40-15 18 41 15 1460 35 13 80
25 40
30 39
NSQ50-26-15 35 29 15 1460 48 13 80
50 26
60 24
NSQ60-30-15 42 33 15 1460 50 13 100
60 30
72 27
NSQ75-25-15 52 28 15 1460 51 13 100
75 25
90 22
NSQ100-18-15 70 20 15 1460 55 21 100
100 18
120 15
NSQ150-15-15 105 17 15 1460 56 21 150
150 15
180 13
NSQ 200-12-18.5 200 12 18.5 980 45 150
NSQ150-22-22 105 25 22 980 60 32 150
150 22
180 20
NSQ200-15-22 140 17 22 980 60 45 150
200 15
240 13.5
NSQ 60-46-30 60 46 30 980 14 100
NSQ 70-38-30 70 38 30 980 21 100
NSQ100-35-30 70 38 30 980 50 21 100
100 35
120 31
NSQ150-30-30 105 33 30 980 50 21 150
150 30
180 26
NSQ 150-35-30 150 35 30 980 50 21 150
NSQ 200-20-30 200 20 30 980 52 21 150
NSQ 240-20-30 175 23 30 980 60 21 150
240 20
280 18
NSQ 300-15-30 300 15 30 980 57 28 200
NSQ100-50-37 70 53 37 980 43 13 100
100 50
120 47
NSQ300-20-37 240 22 37 980 58 28 150
300 20
360 17
NSQ400-15-37 280 18 37 980 59 28 200
400 15
480 12
NSQ 150-35-45 150 35 45 980 48 36 150
NSQ200-30-45 140 33 45 980 53 25 150
200 30
240 27
NSQ 500-15-45 500 15 45 980 57 46 250
NSQ150-45-55 105 47 55 980 50 21 150
150 45
180 42
NSQ250-35-55 175 38 55 980 53 36 150
250 35
300 33
NSQ600-15-55 420 18 55 980 62 32 250
600 15
720 11
NSQ200-45-75 140 48 75 980 52 18 150
200 45
240 41
NSQ350-35-75 245 38 75 980 60 29 200
350 35
420 31
NSQ400-25-75 280 29 75 980 62 29 200
400 25
480 23
NSQ 200-60-90 200 60 90 980 50 14 150
NSQ 400-40-90 400 40 90 980 54 28
NSQ500-25-90 350 30 90 980 65 25 200
500 25
600 20
NSQ400-50-110 280 54 110 980 56 28 200
400 50
480 45
NSQ 600-30-110 600 30 110 980 57 30 250
NSQ1000-18-110 700 22 110 980 68 50 300
1000 18
1200 13
NSQ780-26-110 545 29 110 980 68 50 300
780 26
935 22
NSQ400-60-132 280 64 132 980 68 28 200
400 60
480 55
NSQ500-45-132 350 49 132 980 67 28 200
500 45
600 42
NSQ500-55-132 350 59 132 980 70 28 200
500 55
600 52
NSQ800-35-132 560 38 132 980 70 42 300
800 35
960 32
NSQ1000-22-132 700 27 132 980 71 50 300
1000 22
1200 17
NSQ650-52-160 455 56 160 980 65 28 200
650 52
780 44
NSQ780-50-185 780 50 185 980 64 38 300
NSQ600-55-200 420 59 200 980 62 28 250
600 55
720 50
NSQ800-55-220 560 60 220 980 66 38 300
800 55
960 50
NSQ1250-35-220 875 39 220 980 70 45 350
1250 35
1500 30
NSQ1500-35-250 1050 40 250 980 72 50 350
1500 35
1800 30
NSQ1750-30-250 1225 34 250 980 70 55 350
1750 30
2100 25
NSQ2000-35-315 1400 40 315 980 72 60 400

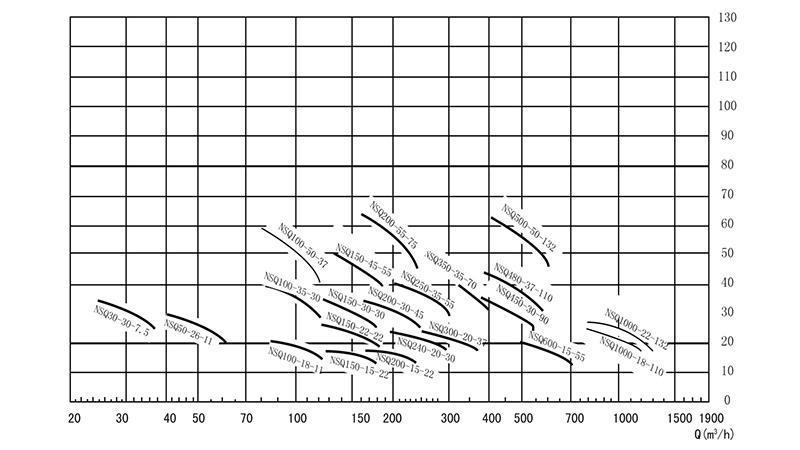

Quick selection chart
Vertical Submersible Centrifugal Pump
Service conditions
  • The normal power supply is 50Hz/380V three-phase AC power supply. In addition, 400V, 440V, 660V, 1140V and other power supply can be customized.
  • The maximum temperature of the medias should not exceed 60℃. If not so, the pump should be coated with cooling sets and cooled by external water.
  • The maximum allowable concentration of the solid particles in the mediums is 45% for ash and 60% for slag.
  • The diving depth of the pump unit should be no more than 20m and no less than 1m.
